Sofia series-ATC Wood working 4*8 ft CNC router machine/Full Automatic ATC CNC 1325 wood cutting machine for sale

FOB Reference Price:Get Latest Price
$11,000.00 - $20,000.00 / Set | 1 Set/Sets ATC CNC 1325 wood cutting machine (Min. Order)
Model Number:
Sofia 1325 ATC CNC 1325 wood cutting machine
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Mechanical structure,machine configuration color (Min. Order: 1 Sets)
Automatic Tool Changer (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Warranty:
2 Years
Place of Origin:
Shandong, China
Brand Name:
WIN
Voltage:
220V/380V
Certification:
CE
Dimension(L*W*H):
3080*2120*1750mm
Product name:
ATC CNC 1325 wood cutting machine
Working area:
1300*2500*200mm
Spindle motor:
7.5 KW water cooling spindle
Control system:
NK105 G3 control system
XYZ Transmission:
Z-Taiwan TBI Ball Screw; X,Y-Gear transmission
Drive&Motor:
Servo motor and driver
Spindle rotating speed:
0-24,000rpm
X,Y,Z Guide Rail:
Taiwan PMI Guide Rail
Command:
HPGL G-code
Working table:
T-slot Table and Vacuum Table
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
5KW
Weight:
1100kgs
Supply Ability
Supply Ability:
500 Set/Sets per Month ATC CNC 1325 wood cutting machine
Packaging & Delivery
Packaging Details
All Sofia series-ATC Wood working 4*8 ft CNC router machine/Full Automatic ATC CNC 1325 wood cutting machine for sale are packed with standard inner plastic wrap and outer plywood case, inner package would be help to tight all the small parts in the package.4 axis cnc glass router cutting machine parts Wood Nesting Cnc Router Machine For Sale
Port
qingdao port dalian port shanghai port guangzhou port tianjin port
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 10 To be negotiated



Sofia series-ATC Wood working 4*8 ft CNC router machine/Full Automatic ATC CNC 1325 wood cutting machine for sale

Sofia series-ATC



The Sofia-ATC CNC machine- An ATC reduces production time by automatically changing cutters between tool paths, thus eliminating the need for the CNC operator to change and zero tools individually. The ATC allows the utech sofia to do the full job, even when different tooling is required to make different types of cuts – like cabinets and furniture – or where different bits are needed for roughing and finishing passes – like signs and complex 3D carvings. A machine equipped with an ATC can perform operations normally done on other pieces of equipment, eliminating the need for additional machines in the shop.



And sofia is fully customizable. Options include Oscillating Tangential knife,Vision Registration system which uses a camera and software to eliminate errors while cutting, the Automatic Tool Changer for rapid tool changes while machining,a misting system for use while cutting aluminum and other non-ferrous metals, CAD/CAM software,control system and many more.



Product Description




background_ (2).jpg





         utech_.jpgCNC Router
ModelSofia-ATC
Working areaX axis travel1300mm
Y axis travel2500mm
Z axis travel250mm
Transmission deviceX axis transmission modeprecision helical tooth gear transmission
Y axis transmission modeprecision helical tooth gear transmission
Z axis transmission modeprecision TBI ball screw
Transmission structureTaiwin PMI linear guide and bearing
Travel speed0-25000mm/min
Working speed0-18000mm/min
Table structureVacuum table&T-slot table
Drive systemDelta servo motor driver+reducer structure
Spindle power7.5 KW ATC water cooling spindle
ATC tool type and number4 PCS linear type( back side)
Spindle speed0-24000rpm
Diameter of cutterφ3.175-φ12.7mm
Command codeHPGL G-code
Compatible Software

Type3/Artcam/UG/Pro-E

/Mastercam/Ucancam etc

Working voltageAC380,220,110V±10%/50~60Hz
Device interfacestandard PCI/USB interface Optional
Control systemNK105 G3 DSP controller
Resolution0.01mm
Machine size3080*2120*1750mm
Machine weight1200kg
Optional parts

8 PCS linear type( back side)

ATC Air cooling spindle

Japan YASKAWA servo motor

Taiwan SYNTEC control System



Detailed Images



1.Machine bed and forklift location display

The bed is the backbone of a cnc router machine,our machine bed adapt wall steel square tube welded together,solid and not deformed.After high temperature tempering treatment to ensure the best strength and rigidity side arranged structure,heavy column,150*250mm gantry. Compared to ordinary machines,it has better stability.

The forklift location display of Sofia CNC router machine.

Forklift loading and unloading reserved space,which can better protect body and cargo carrying weight

2.Machine spindle

Because the accuracy of cnc router machine is greatly depends on the spindle ,The Sofia-ATC Series CNC Router machine comes with Water-Cooled spindles produce higher RPM with lower noise levels.With our sealed cooling system and temperature monitoring, the spindle is always running in a dust-free, cool and highly efficient state

More about EasyRoute 3-Axis CNC Router Buying Guide, Affordable High Performance
http://am.co.za/router/easy



3.Servo motor and drive





Sofia-ATC series cnc router machine adapt Delta servo motor driver,SHIMPO reducer structure*3

They use position feedback to account for errors and system disturbances unlike open loop systems.Servo drives offer a wide range of advantages for automatic machining systems, including superior positioning, speed, and motion control.With this motor, the machine can realize high-precision machining at high speed.

SHIMPO 1:8 gear reducer install on the driving motor, makes the motor is more powerful, and having a longer time service life.

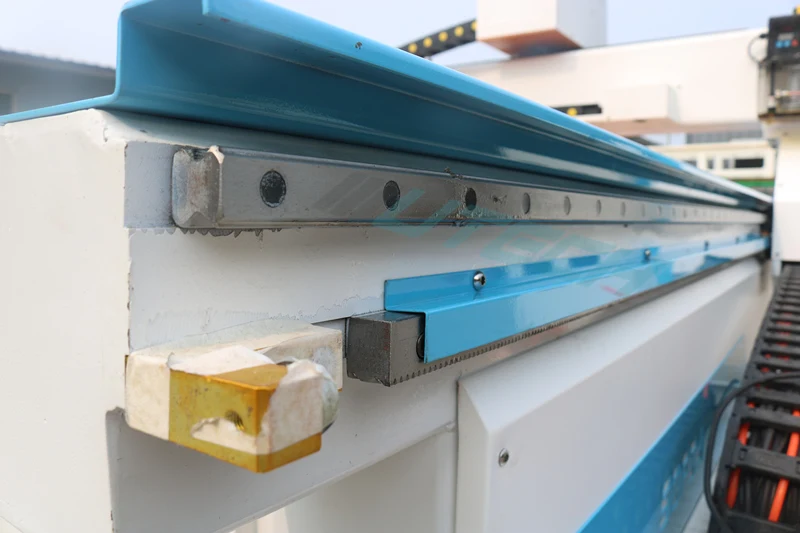

4. Transmission structures


PMI 20 Linear guide+Flange slider+precision 1.25 helical rack

The PMI linear guideway

Low frictional resistance, high precision maintained for long period

High rigidity with four-way load design

Suitable for high speed operation

Easy installation with interchangeability

thus all Sofia series adapt PMI linear guideway.

Rack of Sofia adopts high-precision 1.25 helical tooth rack, which is complementary with the professional motor and professional deceleration device, which runs smoothly, high speed, high precision and low noise.

Adapt PMI 20 Linear guide+Flange slider+precision 1.25 helical rack transmission structures can ensure that Running stably and reliably, working life is long, machine can keep working for long time.



5.Machine head



The machine head of sofia Series is made of T6061/6030 aluminum parts by professional CNC machining center.After oxidation surface and low temperature annealing treatment, the machine head is lighter and more durable.



6.NK105 G3 handle controller






NK105 integrated machine is composed of host system and operation panel. Also called control box, host system integrates system control card, terminal board and other parts, and makes connection with operation panel via 15-core extension cable.
The up and down ends of the back of the control box are used to inlay terminals while left side includes USB interface and DB15 interface. And DB15 interface has already been connected to operation panel when leaving factory. USB interface is for external connection with USB equipment(e.g. USB flash disk).
Also called handheld box, operation panel is similar to handwheel in size, concise and portable,connected with host system via 15-core extension cable. Independent working without distribution cabinet facilitates the machine tool control. And its moving distance is only restricted by length of extension cable.


7.T-slot&vacuum working table+vacuum pump(You can also choose
T-slot working table with PVC)






Vacuum table with 6vacuum zones, which can be strong adsorption of materials of different sizes, density, no deformation. No oil vacuum pump, hight suction, me convenient, stable capability.

Popular CNC Router table structures that use a vacuum to hold the working objects are called Vacuum Tables. Besides its firm holding, a vacuum table can also flatten boards and make closed shaped cut-outs more easily without obstructs like clamps on the toolpath.



 8.LED light





The whole sofia cnc router mahcine is beautiful and elegant.More importly it has cool visuals.



9. Independent control cabinet







Control cabinet manufacturers in the side of the sofia cnc router machine, easy to operate.



10.4 PCS linear type( back side) and ATC Tool Calibration






4 PCS linear type ATC machining centers, most using a manipulator tool change,it is more time-saving.

Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.



Applicable Industry

 * Advertising industry:
Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.
* Furniture industry:
Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.
* Plate processing industry:
Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.
* Crafts industry:
Artificial marble, PVC, wood, plexiglass, copper aluminum and so on.
* Decoration industry:
The screen, wave plate, wood, artificial marble, organic board, decorative board, double color board and other.



Our Certifications

We have ISO 9001 certificate:



ISO english and chinese versions



Company Information

 Shandong U-MAY CNC Technology CO., LTD. Specializes in the research, development, production of CNC MACHINE. Our brand “WIN” has a considerable reputation in the domestic similar products, which has been widely used in wooden furniture, advertising, craft gifts, packaging and printing, logo and etc. Our products have been exported to many countries and regions such as Europe, Russia, Asia, Africa. We are committed to the enterprise management philosophy “Integrity-based, constantly innovation, effective communication, quality services” and the goal of “Technical service customer”, but also great attention to product design, manufacture, installation, adjustment. We will still try our best to maintain one-stop professional service.





FAQ



>>> Our Service ( professional person 24 hours online )

1. The Whole machine Guarantee for 2 years.
2. 24 hours online service, free technical support lifetime .we hope every customer can use our machine easily and have a fun of it.if you have any problems of machine in 2 or 3, 5 years , please feel free to contact us.we will always be here .

3. Machine will comes with manual instruction and operation disk (Guiding Videos) for software Installation, operation and machine's using and maintenance.

4. We will provide the consumable parts at an agency price.

5. Machine has been adjusted before delivery,pls kindly tell us If there is any other questions.



>>> FAQ ( we are gold memeber of alibaba trade assurance, 100% protection for buyers)

1. What is the payment term ?
  we accept T/T(30% deposit).Paypal. the Western Union, and Alibaba Trade assurance.
2. How about your service after sales ?  Can your engineer speak fluent english ?
we offer the service from you got the machine,  including how to install the machine, how to use machine.how to let machine workand so on.  usually we will teach you how to do by email or by skype.our engineer has many years of experience for cnc machine service.he can speak very good English , so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer as only the machine made by ourself,quality can be trusted,and most important thing is we can do better serivce after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory

4 How long is the delivery time?

For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
