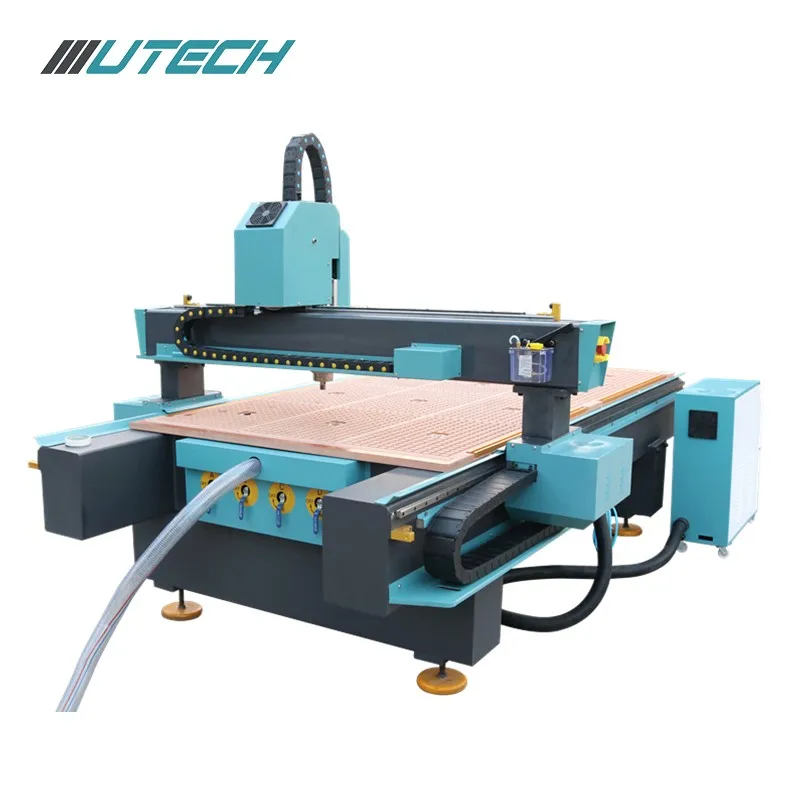

KK CNC Router Machine vacuum table with affordable price

FOB Reference Price:Get Latest Price
$4,000.00 - $5,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
UT1325
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Warranty:
2 Years
Place of Origin:
Shandong, China
Brand Name:
WIN
Voltage:
220V/380V
Certification:
CE
Dimension(L*W*H):
1935*3015*1500mm
Product name:
cnc router
Working area:
1300*2500*200mm
Spindle motor:
3.0/4.5/6/7KW water cooling spindle/air cooling spindle
Control system:
Nc-studio/Mach3/DSP control system
XYZ Transmission:
Z-Taiwan TBI Ball Screw; X,Y-Gear transmission
Drive&Motor:
Stepper motor and driver
Spindle rotating speed:
0-24,000rpm
X,Y,Z Guide Rail:
Taiwan HIWIN Guide Rail
Command:
HPGL G-code
Working table:
T-slot Table
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
3.2KW
Weight:
1100kgs
Supply Ability
Supply Ability:
10000 Set/Sets per Month cnc router
Packaging & Delivery
Packaging Details
All cnc router are packed with standard inner plastic wrap and outer plywood case, inner package would be help to tight all the small parts in the package. And the plywood is firm enough to protect the cnc machine during shipping.
Port
qingdao pott
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 7 To be negotiated
Product Description
SPECIFICATIONS FOR CNC ROUTER MACHINE
Model
Sesame-1325

Working area
X axis travel
1300mm
Y axis travel
2500mm
Z axis travel
150mm

Transmission device
X axis transmission mode
precision helical tooth gear, PMI linear guide
Y axis transmission mode
precision helical tooth gear, PMI linear guide
Z axis transmission mode
precision TBI ball screw, PMI linear guide
Table structure
Vacuum table with T-slot
Travel speed
0-30000mm/min
Max. Power Consumption
(Without Spindle) 3.0Kw
Spindle power
3.2KW Water/3.5KW Air cooled spindle motor
Spindle speed
0-24000rpm/min
Diameter of cutter
φ3.175-φ12.7mm
Drive Motors
Stepper System
Command code
hPGL G-code
Working voltage
AC220V/50/60Hz, 3PH (Option: 110V, 380V)
Device interface
Standard PCI/USB interface Optional
Control system
Nc-studio/DSP controller/Mach3 controller
Resolution
0.01mm
Machine size
1935*3015*1500mm
Machine weight
1200kg
Running Environment Temperature
0 - 45 Centigrade
Relative Humidity
30% - 75%

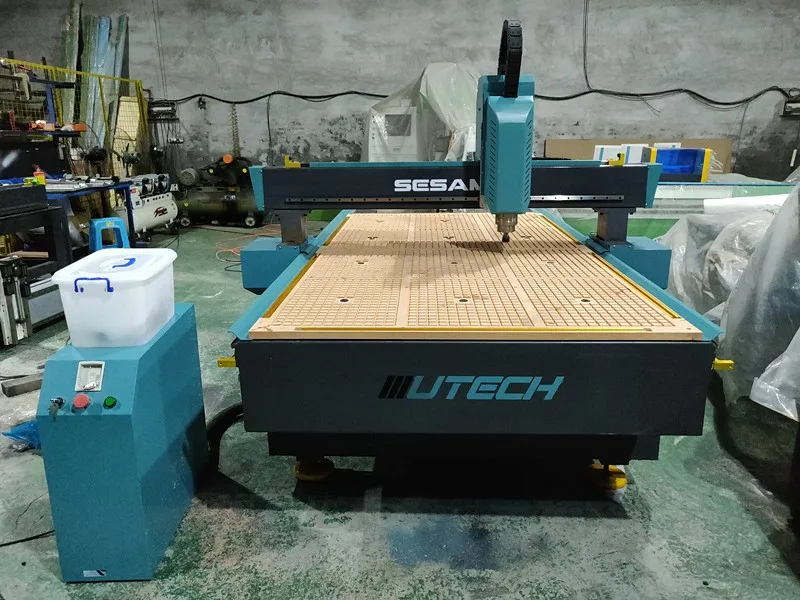

Machine Details
Machine configurations:
#.Model: Sesame-1325 3 axis cnc wood router machine
#.Working Area: 1300*2500*200mm
#.Spindle Power: 3.2KW water cooling spindle(you can also choose 3.5kw air cooling spindle)
#.Spindle cooling way: Water pump
#.Inverter: 3KW Xinfutai Inverter
#.Table: Vacuum table with T-slot table
#.X, Y, Z axis Transmission Way: X Y axis 1.25 helical tooth rack transmission, Z axis Taiwan TBI Ball Screw transmission
#.Guide Rail: Taiwan PMI G20 linear rails+Flange Slider
#.Drive Motors: JMC 860H driver+Patent type stepper reducer*3+450B stepper motor
#.Operating System: Mach3 control system
#.Command Language: G Code
#.Software Compatibility: Option:Type3, Ucancam, solidworks,etc.
#.Heavy duty body (After Quenching process, no deformation, 8-10 bed, very stable )
#.Cast gearbox (stronger stability, high precision, and long life ) woodworking machine
#.Famous electrical components
#.Japan Omron Limit switch electric ( Low tension )
#.Tool sensor, Filter
#.Tool box
#.Working Voltage: AC380V/3PH/50Hz(option:220V/50hz,single phase)

Optional parts:
1. 4.0, 5.5KW water cooling or air cooling spindle
2. Water-Cooling Table-Water tank
3. Control system: Rich auto-A11 DSP control system(option:NC-studio)
4. Inverter: Delta, Fuling Inverter.
5. Motor and driver: servo motor and driver.
6. Dust collector.
7. The vacuum pump(optional water cooling or air cooling).
8. T-slot table
3.2KW Utech Water cooling spindle

Because the accuracy of cnc router machine greatly depends on the spindle. The High-quality SESAME series CNC Router machine comes with 3.2kw water or 3.5 air cooled high-frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collects. Fully programmable speeds from 6000 to 24000RPM, and comes complete with pneumatically retractable vacuum hood.

3.7kw Xinfutai/Fuling Inverter(VFD).

The whole electrical system is consisting of a CNC machine, variable frequency drive, time relay, and brake assembly.
We adapt 3.7kw VFD, Greatly improve the machining accuracy and production efficiency of CNC machine, play an important role in product quality improvement, production increase, cost decrease, automation level increase, and maintenance reduced.

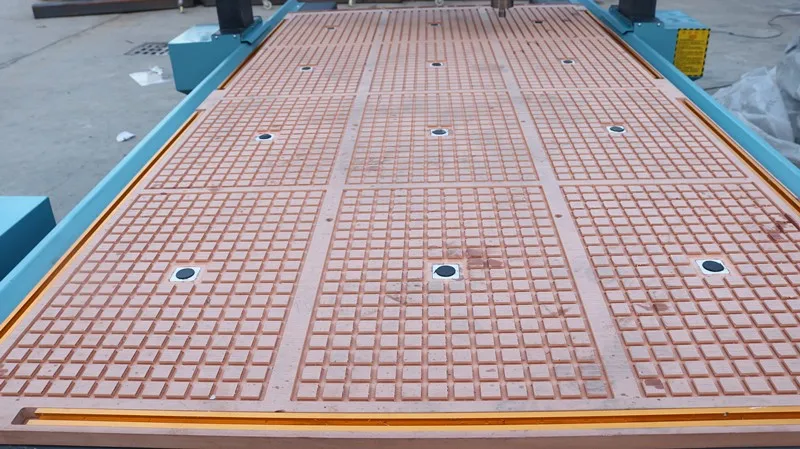

Vacuum table with T-slot.

Vacuum tables are devices that use suction to securely hold work pieces during machining. They are most commonly used during CNC cutting, whether with a mill or router or with a drag knife. They can be various sizes, and they are comprised of a perforated table top connected to the vacuum chamber, and a vacuum pump that continuously applies suction.

Z-axis Transmission Way.

TBI High-Precision Ball-screw Transmission (Taiwan)

1) Higher efficiency than traditional ball screws.
2) Gothic groove shape, the shaft direction clearance can be adjusted to a minimum and can be easily transferred.
3) The internal circulation method is applicable to many different scenes, and the circulation method is selected according to its own needs.
4) Use rigorous materials, high heat treatment and processing technology to supply durable products.


X, Y axis Transmission Way.

Precision 1.25 module helical rack gear.

Helical teeth gears provide continuous engagement along the tooth length and are often quieter and more efficient than straight tooth gears and also offer higher loading for same rack width. Helical tooth gears resemble spur gears in the plane of rotation but include teeth that are twisted along a helical path in the axial direction.

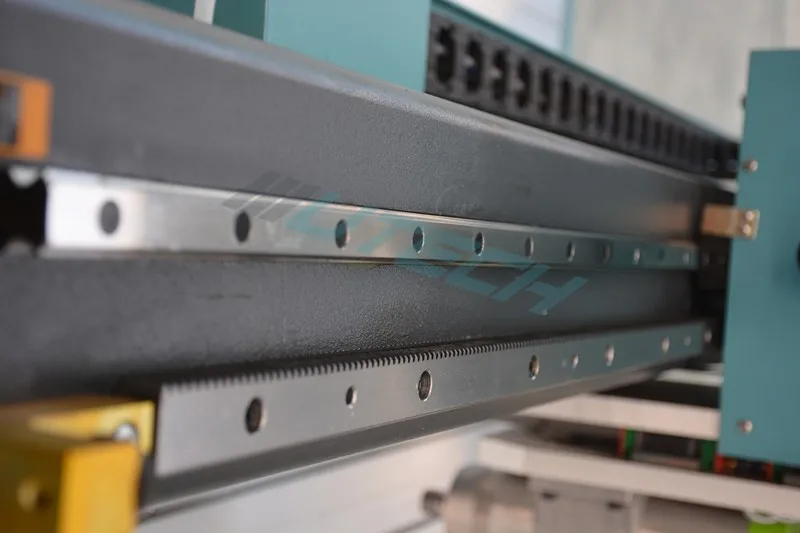

Transmission guide.

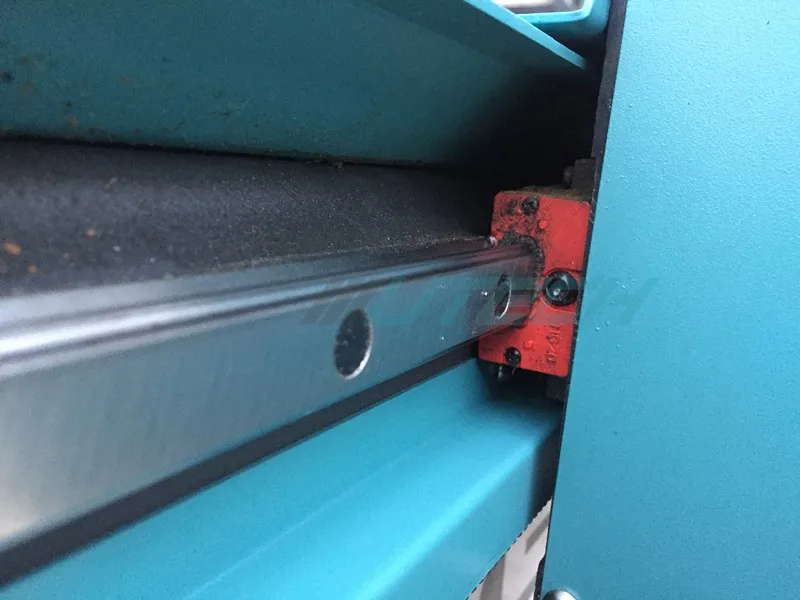

PMI Linear guide+High assembly Flange slider
(1)High positioning accuracy, high repeatability
(2) Low frictional resistance, high precision maintained for the long period
(3) High rigidity with four-way load design
(4) Suitable for high-speed operation
(5) Easy installation with interchangeability

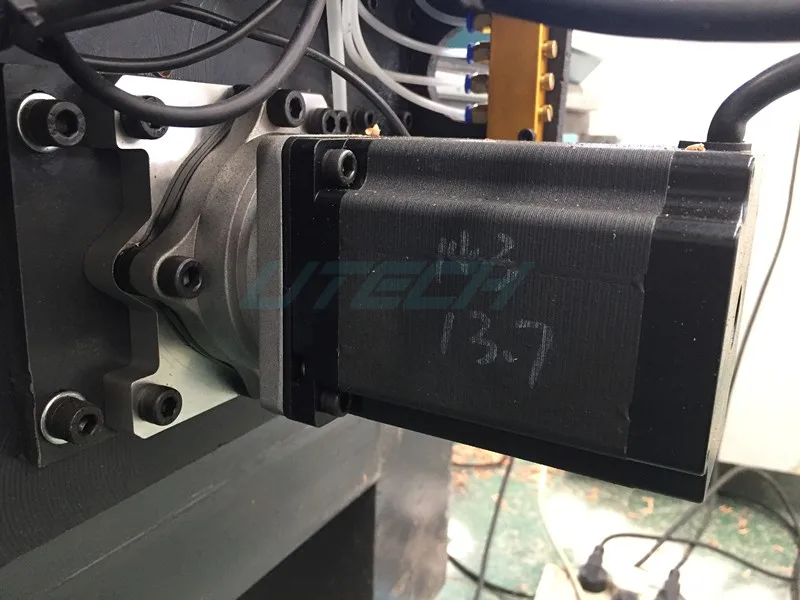

Stepper motor.

The stepper motors are installed on all axes to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed. Stepper motors are well proven high degree of reliability.
The machine is installed 4 sets of motors and Driver. Y-axis

use double motors drivers way.

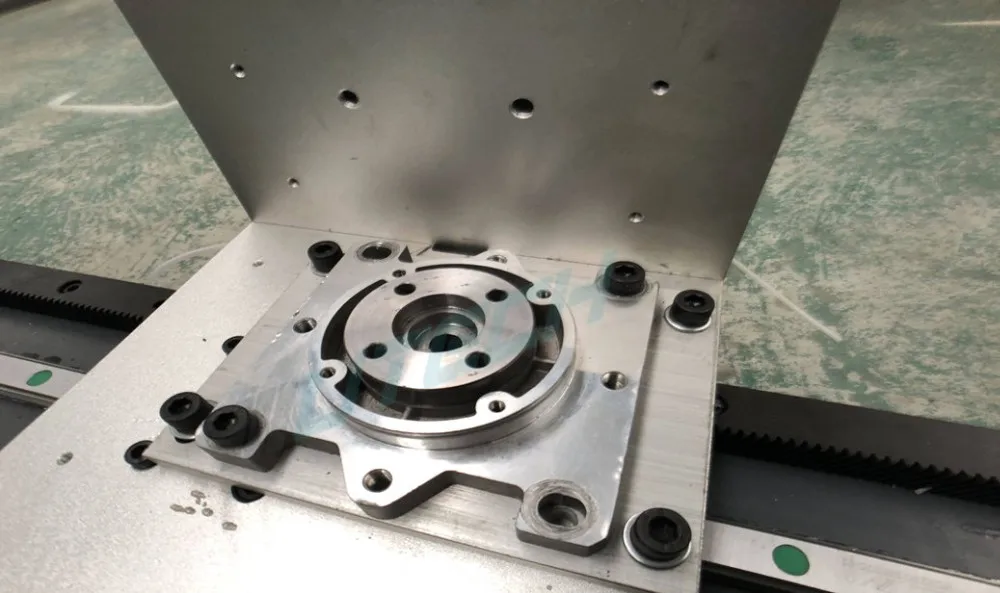

Utech Patent 1:4 Reducer Structure.

Patent design 1:4 gear reducer install on the driving motor, makes the motor is more powerful, and having a long time service life.

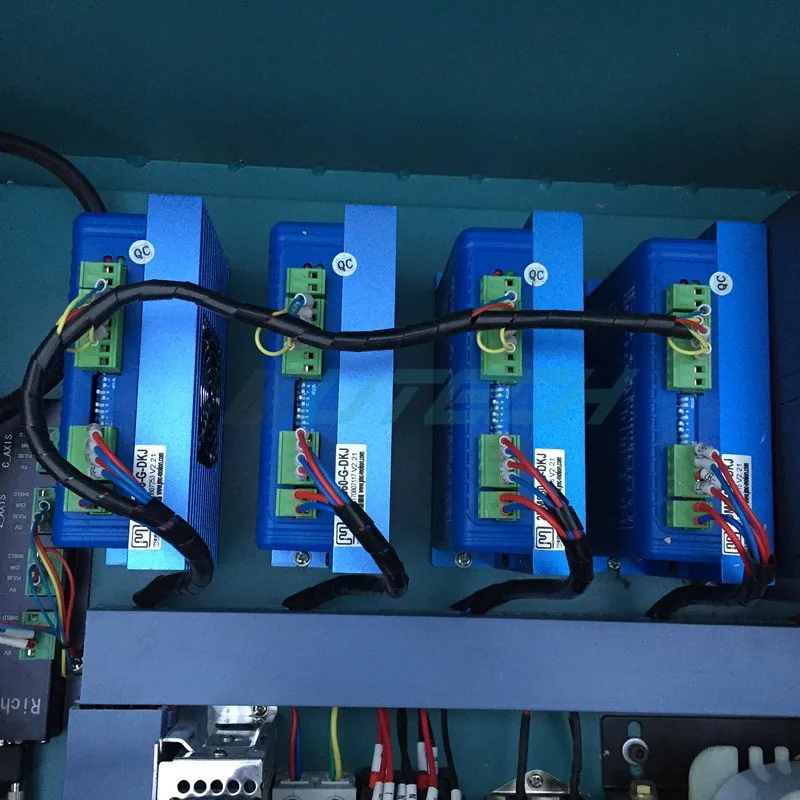

Stepper Driver.

Selecting a chopper driver and configuring it for a specific motor requires a good understanding of both the motor and the controller. Mismatched motors and drivers can result in disappointing performance. Or worse: damage to the motor and/or controller. we deal with the most important part: making sure that your motor and driver are compatible

Famous electrical components.

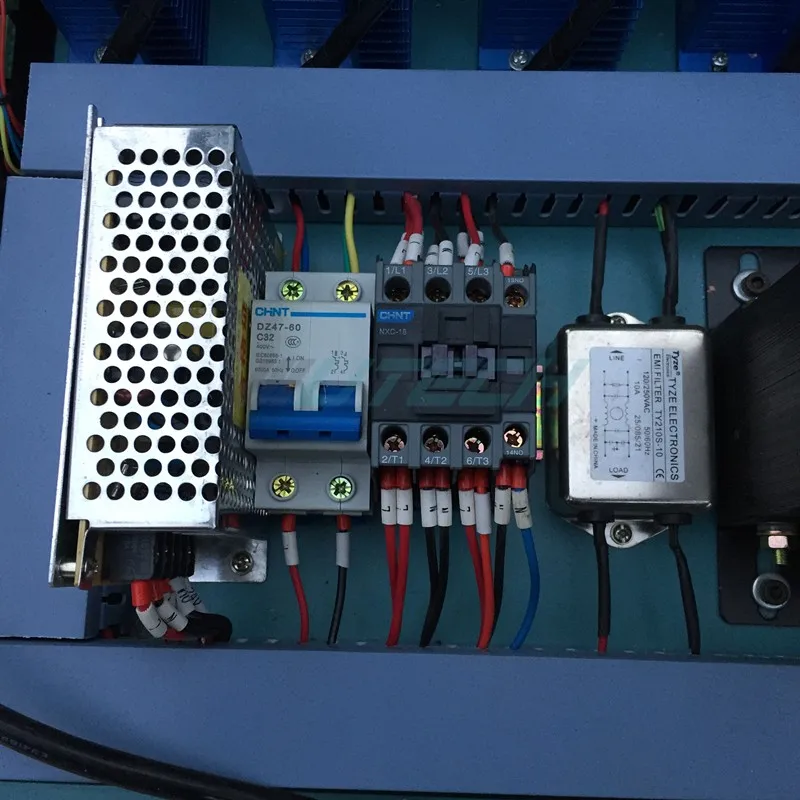

CNC electronics are a vital part of any CNC machine. Aside from the Motors and CNC controllers, There are many electronic components that assist in the machine operation.
Many people feel more threatened by electrical components than the mechanics of a machine. we create a fully working machine.

Mach3 control system.

Mach3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC's to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available. Mach3 is customizable and has been used for many applications with numerous types of hardware.

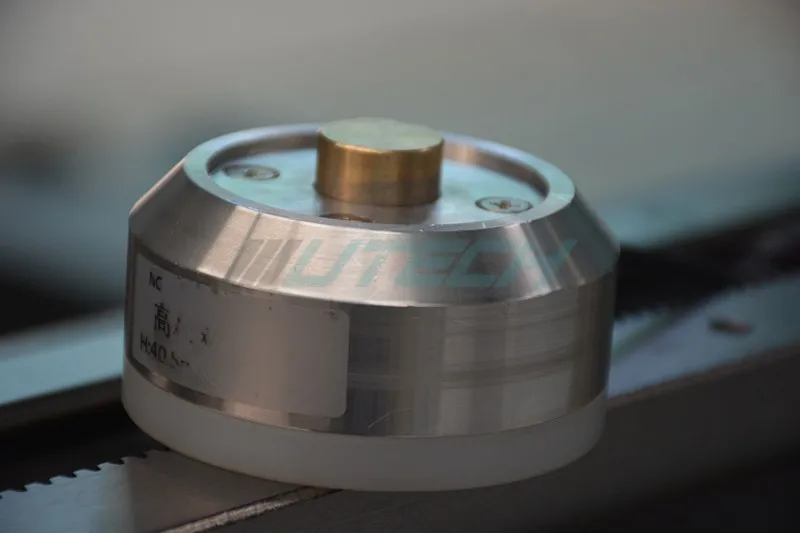

Tool sensor.

This device takes the guesswork out of tool changes and ensures that every tool path that you run is accurate. Consistent Z height across tool changes is critical, especially when running multi-tool jobs like cabinet work, raised panel doors and intricate 3D carving projects.
CNC Tool Sensor allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

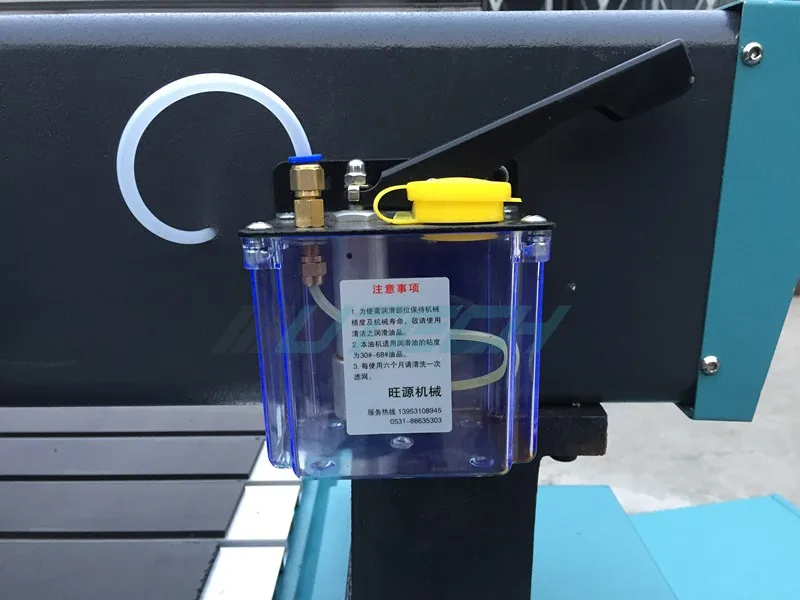

Manual oil lubrication system.

Protecting machinery is an ongoing responsibility. To guarantee high performance over the course of time requires both long-term and spontaneous maintenance. A manual lubricator not only distributes grease or lubrication for a variety of large machinery, but it also allows operators to do so in a timely manner.

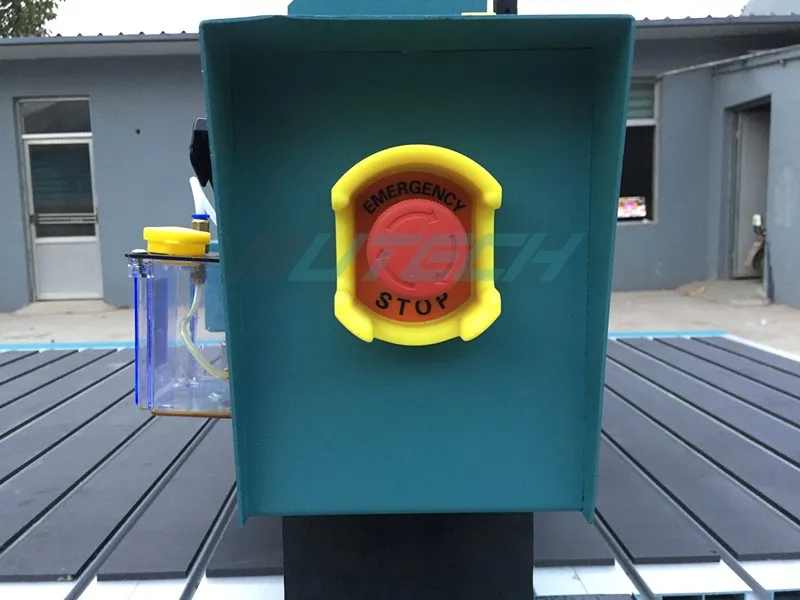

Double Insurance Emergency Stop Button.

There is double insurance emergency stop switch. In case of any emergency, the worker can press any emergency stop button and the machine will stop working.

Machine Advantage

According to overseas custom demand and market research, as for the overall design structure of the bed body, we adopt separated type lathe bed structure. With the purpose of After ensuring that the customer receives the equipments, there's no need to make a complete disassembly and will not affect the operation of the equipment. In this circumstance, we optimized the design structure, then, the final packaging size of the product was saved by 5 cubic meters. Thus saving transportation costs.

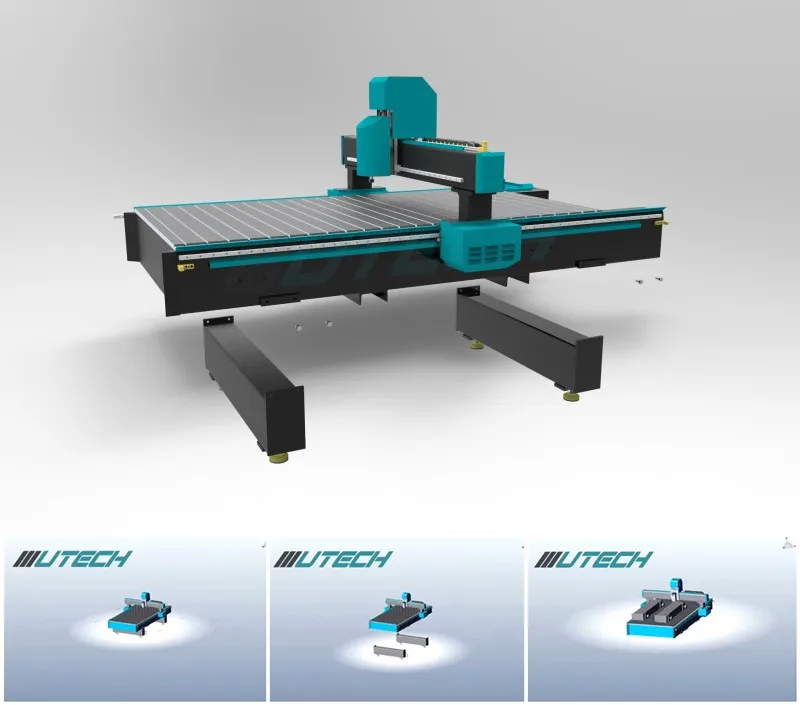

The machine main body and the machine legs are freely separable when delivery the legs are disassembled and put on the table, which will reduce the machine's package size, then will save the shipping cost.

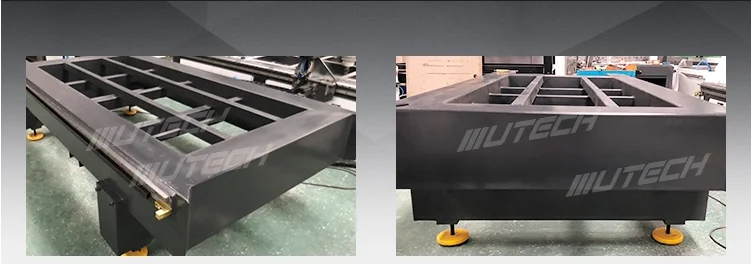

The bed is the backbone of a cnc router machine, our machine bed adapts 200*300mm thick wall steel square tube welded together, solid and not deformed. After high temperature tempering treatment to ensure the best strength and rigidity side arranged structure, heavy column,150*150mm gantry. precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine. Compared to ordinary machines, it has better stability.

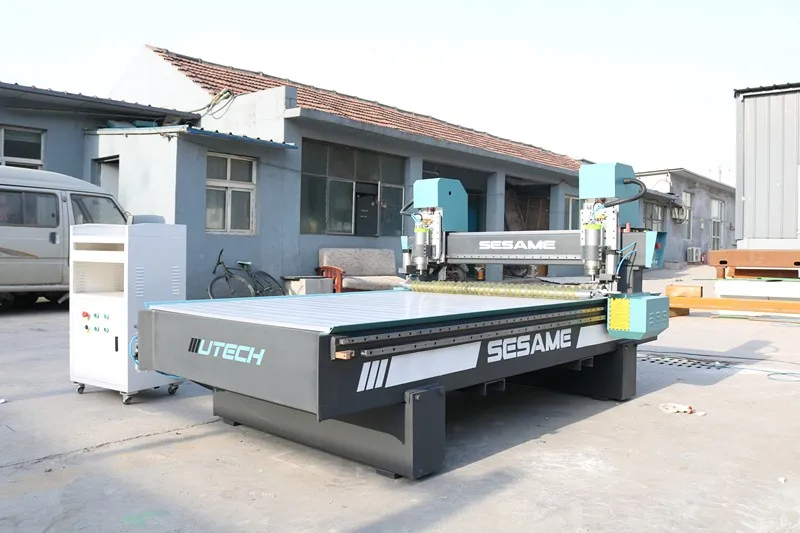

The forklift location display of Sesame CNC router machine.
Bed welding process increases the reserved forklift space, highlights two major advantages: First, it can better protect machine body and cargo carrying weight; Second, it's more convenient for customers to load or unload the equipment.

The Spindle Mounting Plate of Sesame adapts High Precision aviation aluminum alloy parts T6061/6030, Which are all made by professional CNC machining center. After the oxidation surface and low-temperature annealing treatment, the machine head is lighter and more durable. And the high requirement assembly process ensures the precision of the product again.

Sesame adapts Portable detached optional design control cabinet.

1)Interfacing reaches the purpose of plug and play.

2)Save more space.

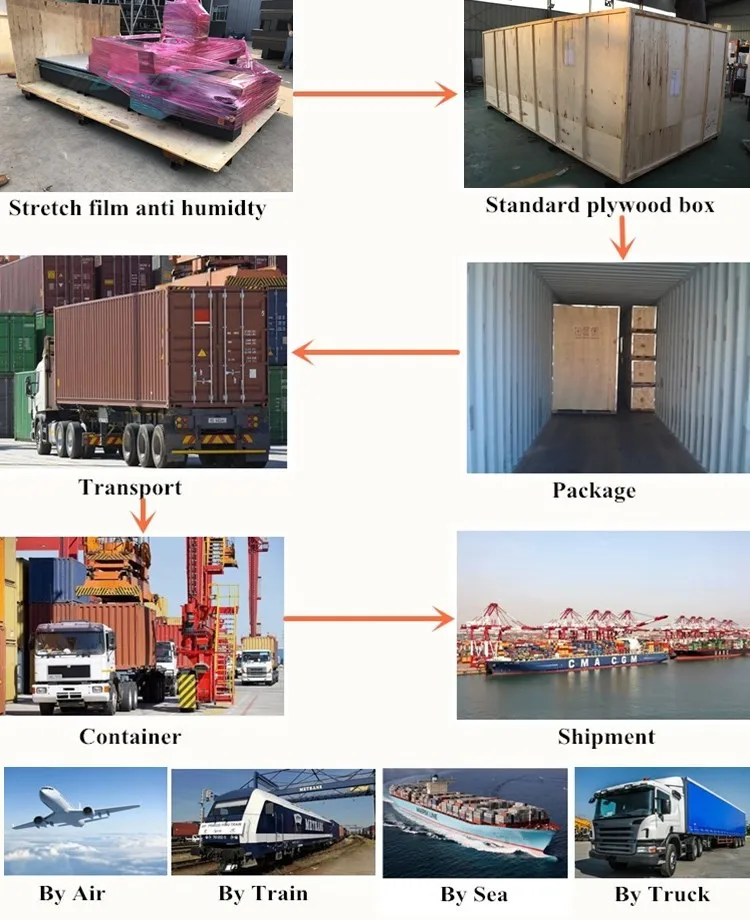

Packing & Delivery

Package Details:


1. Our Wooden Case is after fumigation treatment. Needn`t timber inspection, saving shipping time.
2. All the spare parts of the machine were covered by some soft materials, mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process. Then we`ll cover plastic wrap out it tightly, make sure intact of the covered soft materials, also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has a firm iron jack, convenient for Handling and transport.

Our Company
Shandong U-MAY CNC Technology CO., LTD. Specializes in the research, development, production of CNC MACHINE. Our brand "WIN" has a considerable reputation in domestic similar products, which has been widely used in wooden furniture, advertising, craft gifts, packaging and printing, logo and etc. Our products have been exported to many countries and regions such as Europe, Russia, Asia, Africa. We are committed to the enterprise management philosophy "Integrity-based, constant innovation, effective communication, quality services" and the goal of "Technical service customer", but also great attention to product design, manufacture, installation, adjustment. We will still try our best to maintain one-stop professional service.
